ATP080-24 Air To Plate Thermoelectric Cooler Assembly 80W 24VDC Life Time 70000hours

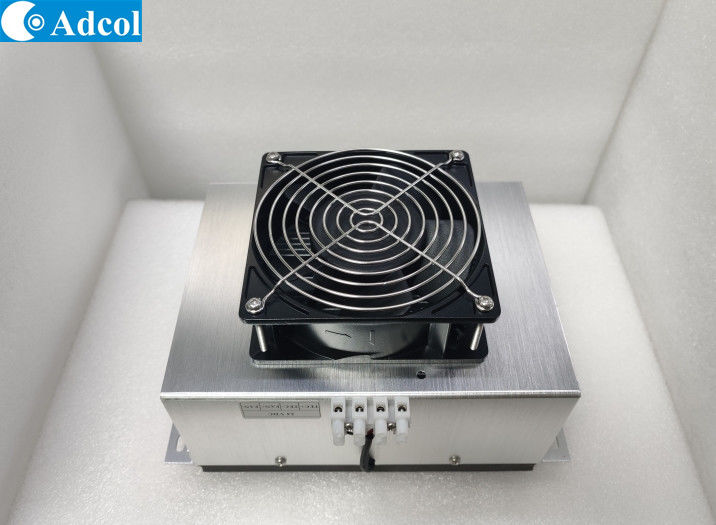

Large Image : ATP080-24 Air To Plate Thermoelectric Cooler Assembly 80W 24VDC Life Time 70000hours

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATP080-24

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500pcs per month

Contact Now

ATP080-24 Air To Plate Thermoelectric Cooler Assembly 80W 24VDC Life Time 70000hours

Description

P/N:	ATP080-24	Cooling Method:	Plate Cool
Radiating Method:	Air Force	Ambient Temperature/humidity:	-20 To 80°C
Cooling Capacity:	80W	Input Power:	90W
Heating Capacity:	130W	Normal Current:	6.2A
Overall Dimension:	240mm X 250mm X 140mm	Weight:	3.5KG
Life Time:	>=70,000 Hours	Noise:	45 DB
Tolerance:	10%
Highlight:	80W thermoelectric Cooler Assembly , 24VDC thermoelectric Cooler Assembly , 70000hours thermoelectric Cooler Assembly

ATP080-24 Air To Plate Thermoelectric Cooler Assembly 80W 24VDC Life Time 70000hours 0

ATP080-24-00 Air to Plate thermoelectric Cooler Assembly

The ATP080-24 Thermoelectric air plate is designed for electronic cabinets and environmental chambers. It can

maintain ambient temperatures while removing up to 80W.This model is available in 24VDC configurations. This air

Coldplate is virtually maintenance-free, with no filters ambient to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.

Features 特点

1.80W capacity rated at ΔT = 0ºC,Tambient = 30°C 在环境温度 30 度下制冷量约 80 瓦

2.Refrigerant free - environmentally friendly 不使用制冷剂-环境友好

3.Wide operating temperature range of –20°C to +80°C 使用环境温度宽–20°C to +80°C

4.Shift between heating and cooling without using a heater 加热制冷切换

5.Reduced noise and vibration with no moving parts 无机械压缩,运行安静可靠

Application 应用

1. Analytical instrument 分析仪器的冷却板

2.Medical diagnostics 医疗设备恒温

3.Industrial device工业设备冷盘

4.Food and Beverage Cooling 食品消费品冷藏

ATP080-24 Air To Plate Thermoelectric Cooler Assembly 80W 24VDC Life Time 70000hours 1
