Product Details:
|
| Model: | ARC100-24-AQ-00 | Steady Temperature: | Can Be Set At 15~30 +/-2 Degrees Celsius |
|---|---|---|---|
| Input Power: | 24VDC 8.5A | Switching Power: | 220~240VAC、50~60Hz、10A |
| Ambient Temperature: | 10 - 40 ºC | Weight: | 4.5KG |
| Size: | 239mm×140mm×123mm | Colour: | Black |
| Life Expectancy: | Over 200,000 Hours | Volume: | 50-100L |

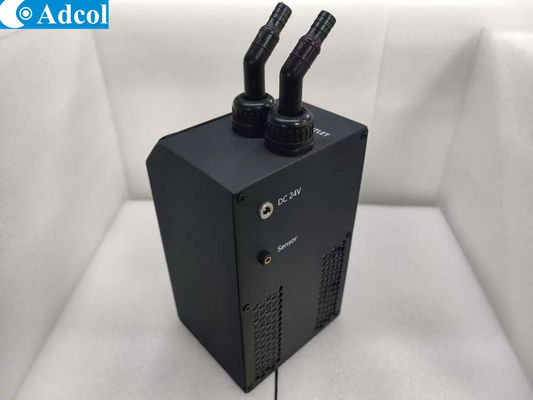

Product Introduction:
This product is used for raising fish, and it can effectively regulate the water temperature in the fish tank to provide a comfortable temperature for the fish. The thermostat uses advanced semiconductor refrigeration technology, which has the advantages of precise temperature control, easy operation, and environmental protection.
Working Conditions:
Environmental temperature: 10℃ ~ 40℃; Relative humidity: ≤70%; Aquarium volume: 50~100L
Technical performance index
1. Host model: ARC100-24-AQ-00
2. Constant temperature: 15~30 +/-2 degrees Celsius can be set
3. Size: 239mm×140mm×123mm (length × width × height), excluding the joint protruding size
4. Weight: 4.5kg;
5. Input power: 24VDC 8.5A;
6. Switching power supply: 220~240VAC, 50~60Hz, 10A;
method of application:

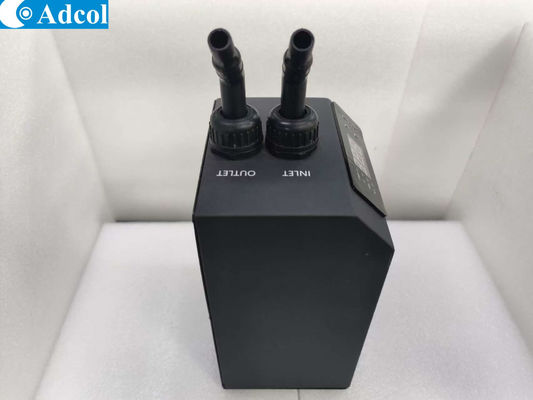

1. Connect the water pipe: Put the sealing pad on the inlet and outlet of the thermostat, tighten the joint, put on the clamp (to prevent the water pipe from falling off), connect the water inlet of the thermostat to the water pump, connect the water outlet to the water tank, power the water pump, and observe whether there is normal water flow and whether there is leakage.

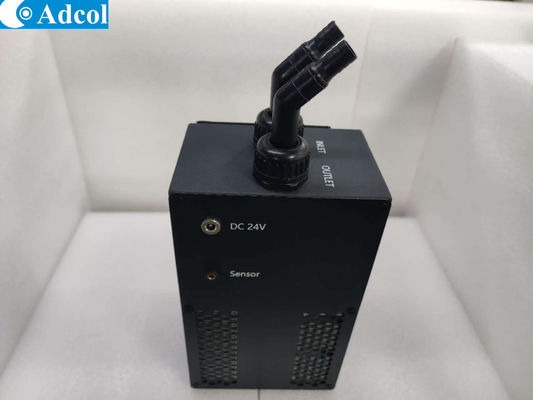

2. Power on: Connect the temperature sensor cable to the corresponding interface, place the temperature sensor in the water, plug the thermostat into the power socket, and turn the switch to the "I" position after the power is turned on.

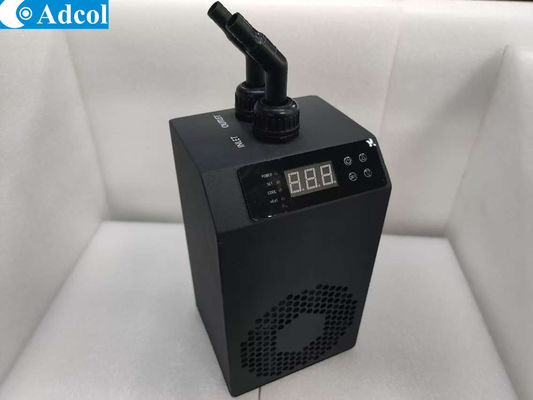

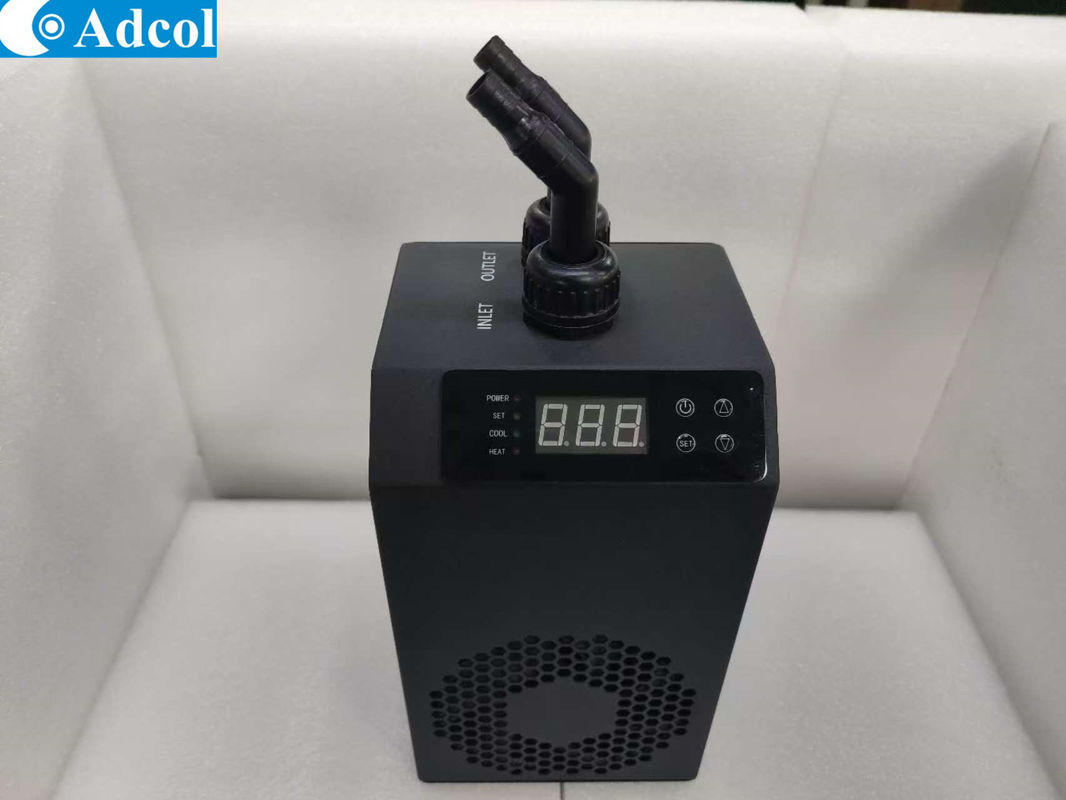

3. SET the temperature: long press [] key on the display panel for 3 seconds to start, press [▲] or [▼] key to set the temperature (setting light flashes), display the set temperature value, press [set] to determine, no key operation after 5 seconds to restore the display of temperature control sensor temperature value;
* Long press [▲] or [▼] to quickly add or subtract.
Note:
1. Do not block the intake and outlet of the thermostat, and leave a distance of more than 10cm
2. The water flow should be smooth to prevent debris from blocking the pipeline
