24 holes cooling module Designed for temperature regulation in polymerase chain reaction

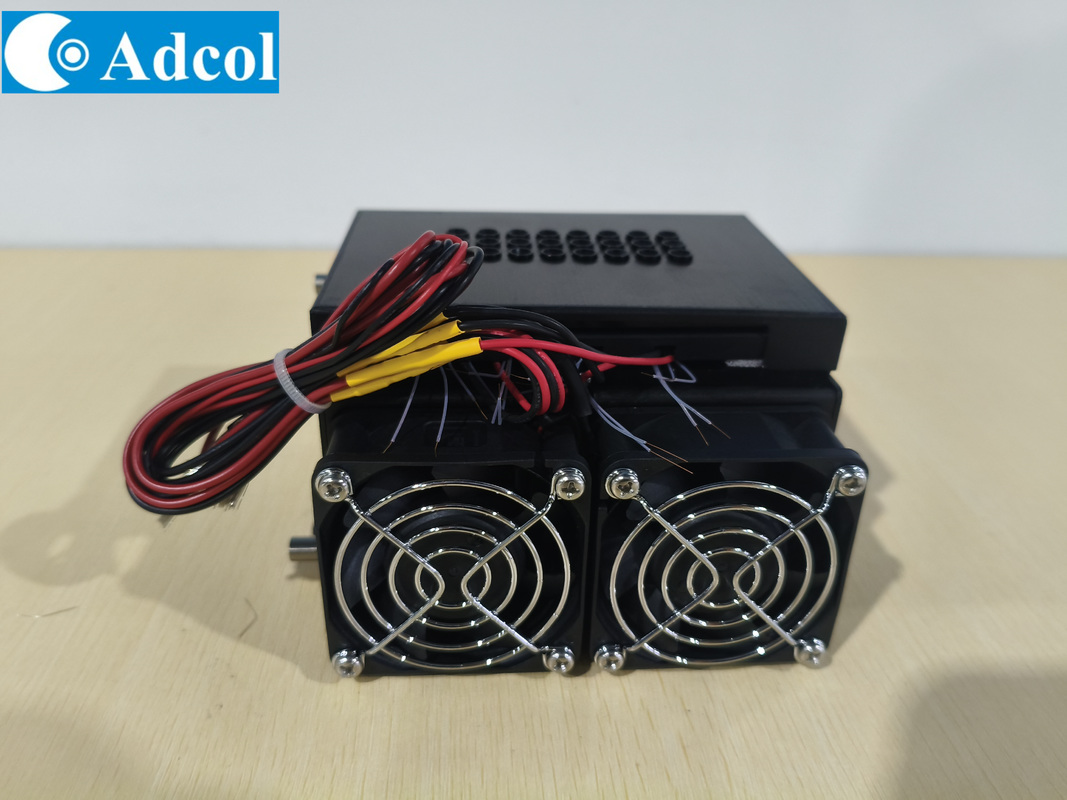

Large Image : 24 holes cooling module Designed for temperature regulation in polymerase chain reaction

Product Details:

Place of Origin:	CHINA
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	PCR24-12

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500PCS

Contact Now

24 holes cooling module Designed for temperature regulation in polymerase chain reaction

Description

P/N:	PCR24-12	Input Voltage:	12VDC
Peak Current:	6A	Heating Speed:	5℃/S
Cooling Speed:	6℃/S	Temp Uniformity:	±0.1
Operating Temperature Range:	-20~50℃	Temperature Control Range:	0-100℃
Installation Aperture Depth:	Ф4.5mm	Sensor Type:	NTC
Material Of Cold Block:	Al 6063-T5	Size:	15212785 MM

Adcol Electronics(Guangzhou)has many years of professional product development

experience on thermoelectric application. Through the accumulation of experience and

technology, we deeply understand the needs of the customers, thereby help the customers

deeply customize the thermolectic cooler/heater for PCR and provide corresponding

technical support.

PCR24-12VDC 24 holes cooling module

1.Product Feature:

High reliability
Long life and stable performance
Built-in high-precision temperature sensor(NTC)
Quick change on temperature(3-8℃/S)
Uniform temperature(The best ±0.1℃)
Flexible standardized design(4/8/16/24/48/96H)
Gradient temperature
Multiple optical scanning modes(top/side……)

2. Product drawing

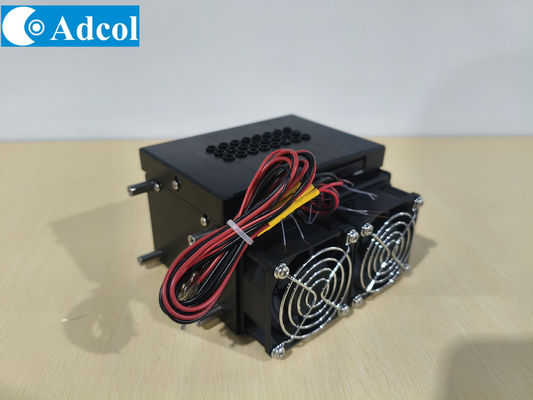

24 holes cooling module Designed for temperature regulation in polymerase chain reaction 1

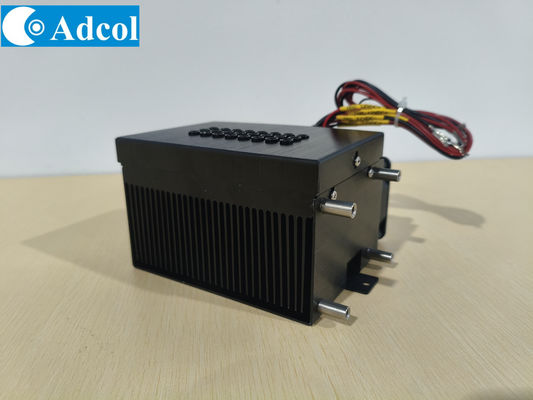

24 holes cooling module Designed for temperature regulation in polymerase chain reaction 2

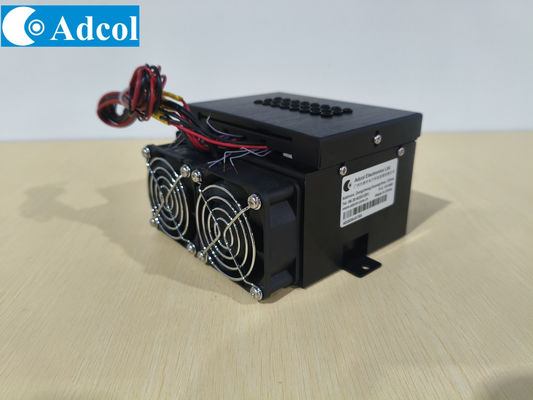

24 holes cooling module Designed for temperature regulation in polymerase chain reaction 3
