ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics

Large Image : ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATP040-12VDC

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500pcs per month

Contact Now

ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics

Description

P/N:	ATP040-12VDC	Cooling Method:	Plate Cool
Radiating Method:	Air Force	Ambient Temperature/humidity:	-10 To 55°C
Cooling Capacity:	40W	Nominal/Max Voltage:	12/15VDC
Fan, Hot Side:	92X25mm,12VDC,0.0.24	Weight:	1.0KG
Life Time:	>=70,000 Hours	Noise:	45dB
Tolerance:	10%
Highlight:	12VDC Peltier plate cooler , Medical diagnostics TEC cooler , Analytical instrument plate cooler

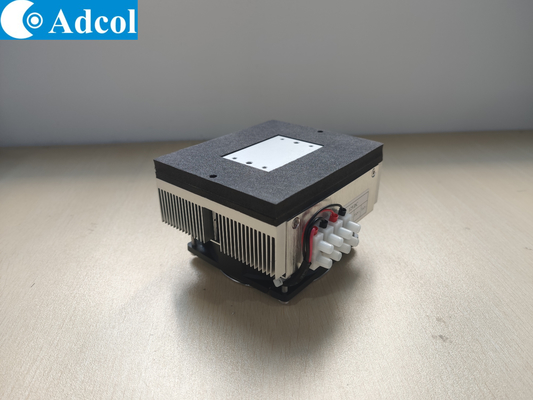

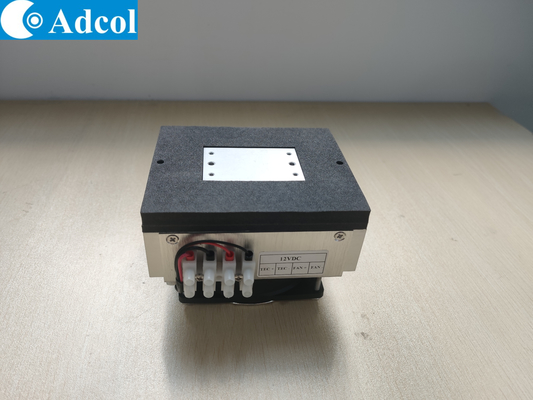

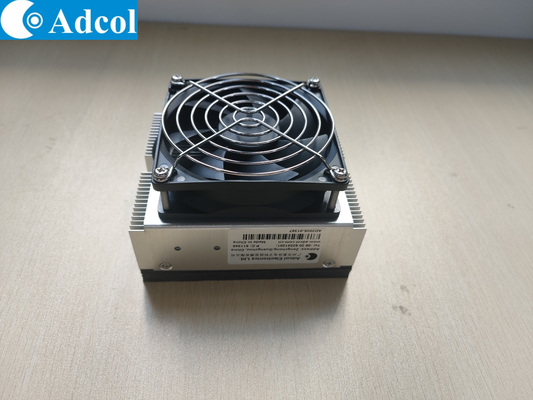

ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics 0

ATP040-12-00

Air to Plate thermoelectric Cooler Assembly

The ATP040-12 Thermoelectric air plate is designed forelectronic cabinets and environmental chambers.lt canmaintain ambient temperatures while removing up to 50W.This model is available in 12VDC configurations. This airColdplate is virtually maintenance-free, with no filters ambientto change, and it can be mounted in any orientation, offeringdesign flexibility with solid-state reliability.

Features

40W capacity rated at ΔT= 0C,Tambient =30°℃
Refrigerant free-environmentally friendly
Wide operating temperature range of -10°Cto +55℃℃
Shift between heating and cooling without using a heater
Reduced noise and vibration with no moving parts

Application

Analytical instrument
Medical diagnostics
Industrial device
Food and Beverage Cooling

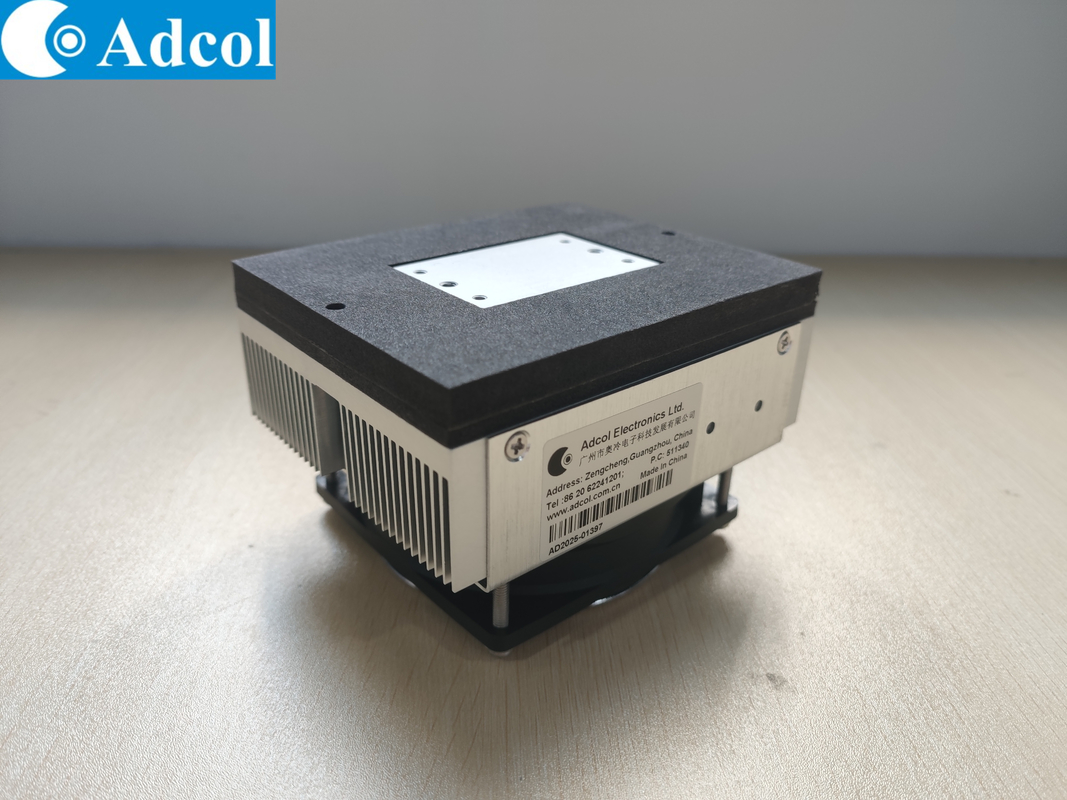

ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics 1
