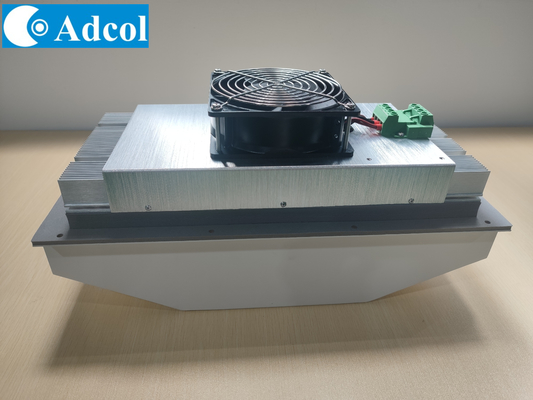

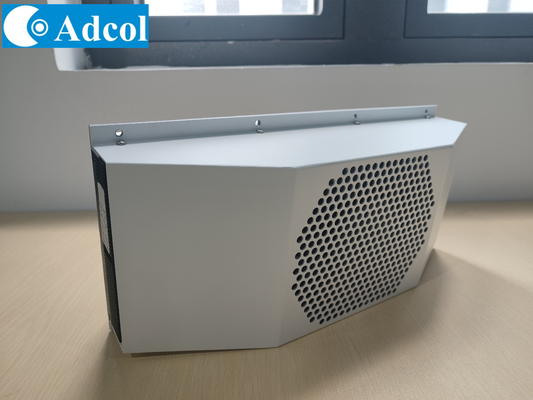

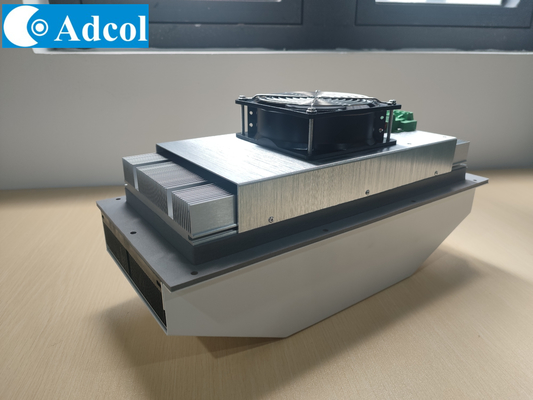

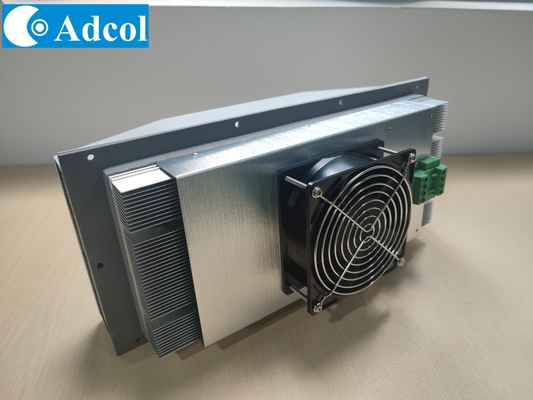

200W 24VDC Air conditioner are widely used in outdoor battery cabinet, indoor battery cabinet and other kiosk which has the temperature and control request

• ATA200-24VDC consists of six portions - thermoelectric module, coldside heatsink,

hotside heatsink, coldside fan, hotside fan and monitoring unit.

• When power is supplied to the ATA200-24VDC, one side of the TEM will be cool

 and theother side will heat.The cold/heat generated will be radiated to the surroundings

via the cold/hot side  heatsink and fans.

• The cold side heatsink and fan direct the inner air into the cabinet to cool it, The hot

end side heatsink and fan direct the outside air for heat dissipating into the external environment.
