110W Air-to-Air Thermoelectric Assembly designed for electronic cabinets, refrigeration and environmental chambers.

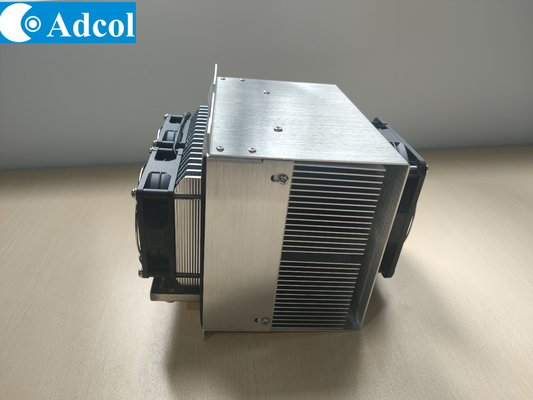

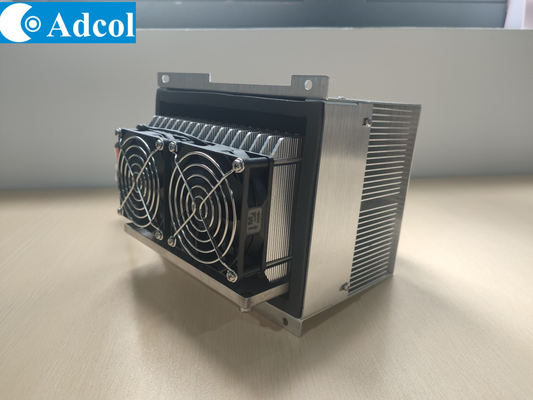

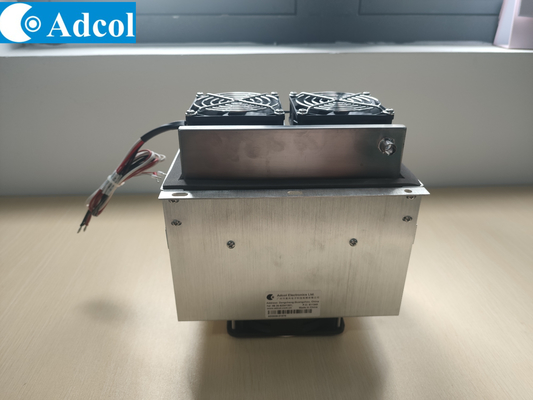

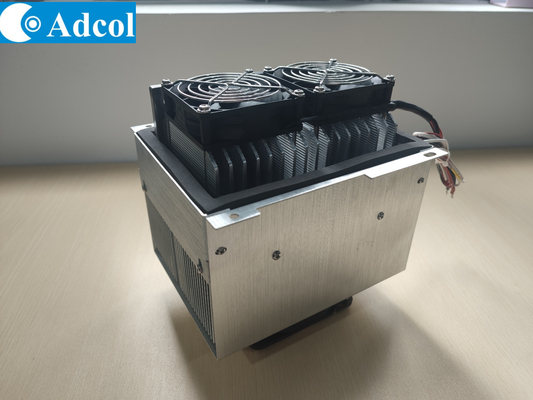

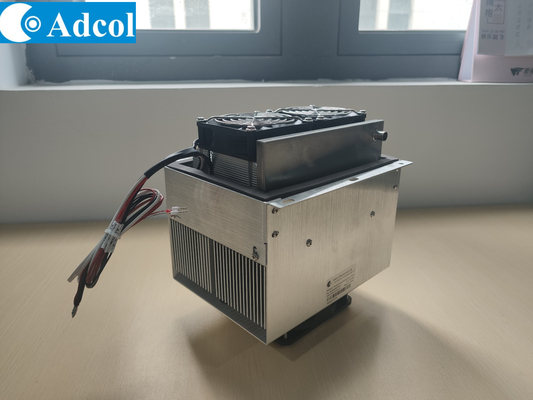

Large Image : 110W Air-to-Air Thermoelectric Assembly designed for electronic cabinets, refrigeration and environmental chambers.

Product Details:

Place of Origin:	CHINA
Brand Name:	ADCOL
Certification:	ISO9001 , CE
Model Number:	ATA110-24VDC

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid Carton Packaging
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Paypal
Supply Ability:	500PCS

Contact Now

110W Air-to-Air Thermoelectric Assembly designed for electronic cabinets, refrigeration and environmental chambers.

Description

P/N:	ATA110-24VDC	Cooling Method:	AIR TO AIR
Cool Objective:	AIR	Heat Dissipation:	AIR
Cooling Capacity:	110	Voltage,nommal(VDc):	24VDC，Vmax=27.4VDC
Current(A):	Initial, 7.5+10% Nommal，6.5+10%	Fan,cold Side:	92x25mm，24VDC， 0.25A
Fan,hot Side:	120x25mm，24VDC，0.35A	Operating Temp:	(-10~55)℃
Installation:	Screw	Noise:	55 DB
Expected Life:	Over 70,000 Hrs	Weight:	5 KG
Highlight:	110W thermoelectric air conditioner , air-to-air thermoelectric assembly for electronic cabinets , thermoelectric cooling system for environmental chambers

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

110W Air-to-Air Thermoelectric Assembly

1.Working principle

The ATA PowerCool Series is an Air-to-Air Thermoelectric Assembly (TEA) that uses impingement

flow to transfer heat. It offers dependable, compact performance by coolingobjects via convection.

Heat is absorbed and dissipated thru high density heat exchangers equipped with air ducted shrouds

and brand name fans. The heat pumping action is created by thermoelectric modules, which are custom

designed to achieve a high coefficient of performance (COP).

2.Introduction

ATA110-24VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration

and environmental chambers. They can cool to 72˚F below ambient or maintain ambient temperatures

while removing up to 280 BTU/Hr (@ 77˚F ambient). Use 12/24/48VDC configuration, it could generate

110W power; These air conditioners are virtually maintenance-free, with no filters to change, and they can

be mounted in any orientation, offering design flexibility with solid-state reliability.

3.Features

Compact design
Reliable solid-state operation
DC operation
RoHS compliant
IP55(IEC 60529)
Product design with IEC60950 Standards

4.Design Criterion

GB/T2423.38-1990 electric component basic environment test regulation R:water test method
GB/T2423.1-2001 electric component basic environment test, second section test A/B
IEC 60950-1:2005/GB4923.1-2011 IT device safety
EN 61000-3-2:2006；EN61000-3-3:2008；EN61000-6-1:2007；EN61000-6-3:
2007 EMC related test criterion

110W Air-to-Air Thermoelectric Assembly designed for electronic cabinets, refrigeration and environmental chambers. 1

110W Air-to-Air Thermoelectric Assembly designed for electronic cabinets, refrigeration and environmental chambers. 2
