50W,12VDC,Air to air thermoelectric Cooler Assembly

Large Image : 50W,12VDC,Air to air thermoelectric Cooler Assembly

Product Details:

Place of Origin:	CHINA
Brand Name:	ADCOL
Certification:	ISO9001 , CE
Model Number:	ATA050-12VDC

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid Carton Packaging
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Paypal
Supply Ability:	500PCS

Contact Now

50W,12VDC,Air to air thermoelectric Cooler Assembly

Description

P/N:	ATA050-12VDC	Cooling Method:	Air Cool
Radiating Method:	Force Air	Ambient Temperature/humidity:	50W
Input Power:	95W	Heating Capacity:	135W
Hot/Cold Side Fan Current:	0.4/0.3 A	TEM Nominal/Startup Current:	8.0/9.1A
Nominal/Max Voltage:	12/15 VDC	Fan,cold Side:	9225,12VDC，0.3A
Fan, Hot Side:	12025,12VDC,P55,0.40A	Weight:	2KG
Life Time:	>=70,000 Hours	Tolerance:	10%
Highlight:	50W thermoelectric cooler assembly , 12VDC air to air cooler , thermoelectric air conditioner with warranty

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

50W,12VDC,Air to air thermoelectric Cooler Assembly

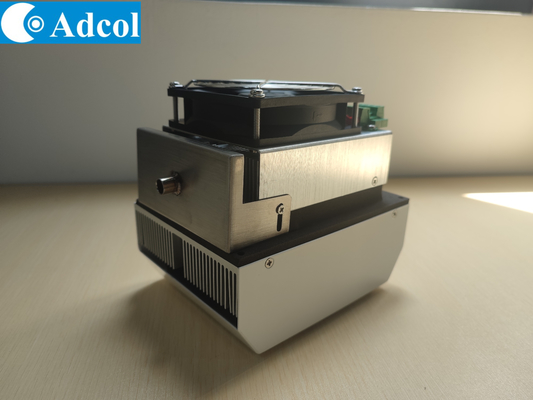

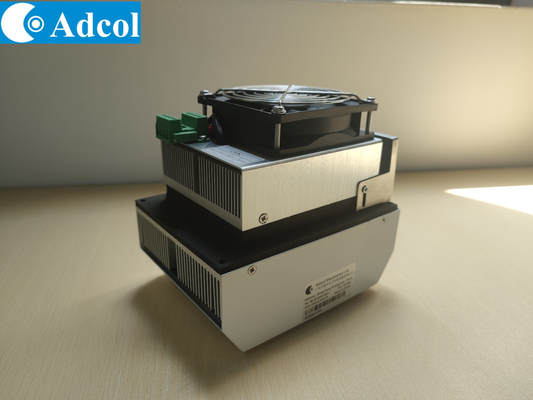

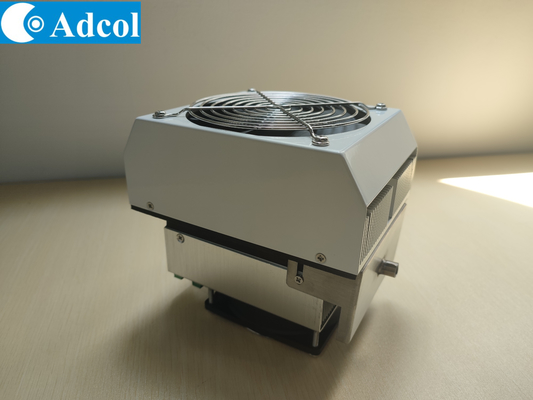

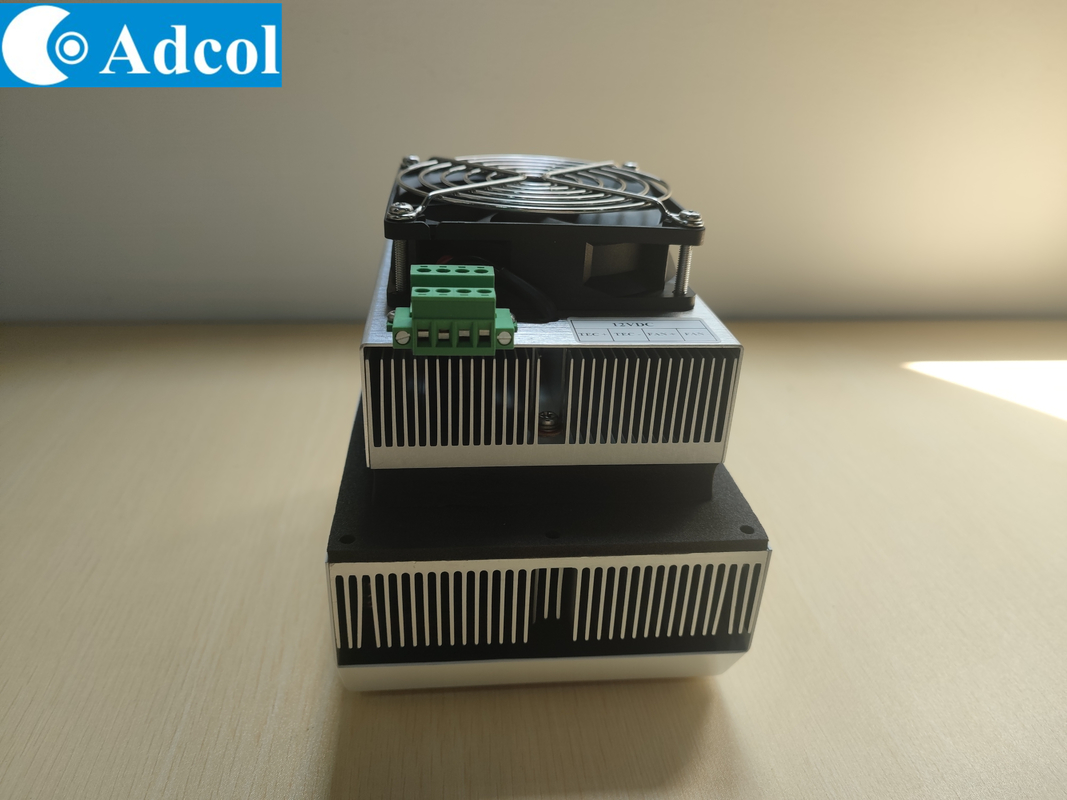

The ATA050-12 Thermoelectric air conditioner is designed for electronic cabinets

and environmental chambers. It can maintain ambient temperatures while removing

up to 50W.This model is available in 12VDC configurations. This air conditioner is

virtually maintenance-free, with no filters ambient to change, and it can be mounted

in any orientation, offering design flexibility with solid-state reliability.

50W,12VDC,Air to air thermoelectric Cooler Assembly 0

Features

50W capacity rated at ΔT = 0ºC,Tambient = 30°C
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
Shift between heating and cooling without using a heater
Reduced noise and vibration with no moving parts

Application

Outdoor enclosures
Outdoor/Indoor Kiosks and display
Battery Cabinet
Food/Consumer Refrigerator

50W,12VDC,Air to air thermoelectric Cooler Assembly 1

50W,12VDC,Air to air thermoelectric Cooler Assembly 2

50W,12VDC,Air to air thermoelectric Cooler Assembly 3
