60W Air to air thermoelectric Cooler is designed for electronic cabinets and environmental chambers.

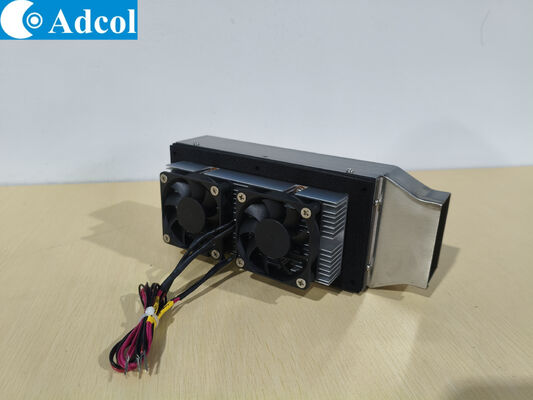

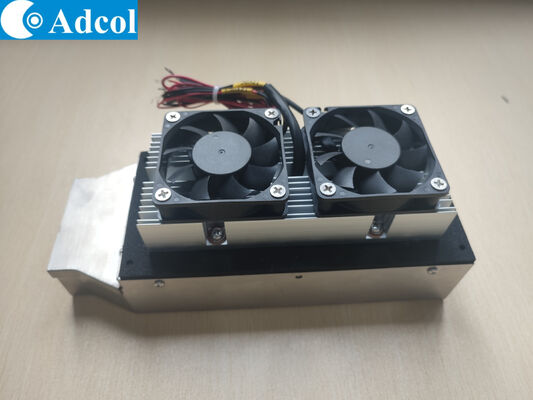

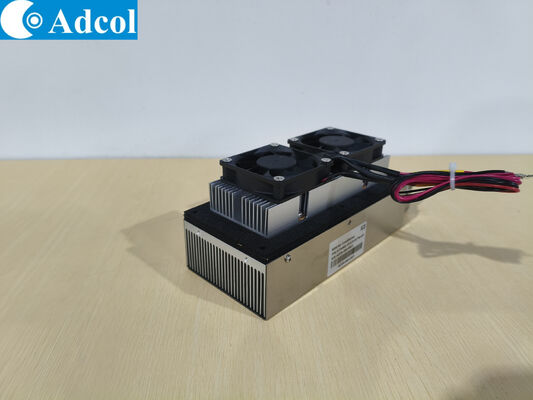

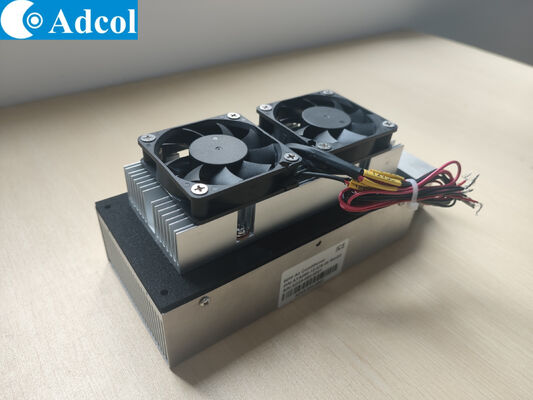

Large Image : 60W Air to air thermoelectric Cooler is designed for electronic cabinets and environmental chambers.

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATA060-12

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500pcs per month

Contact Now

60W Air to air thermoelectric Cooler is designed for electronic cabinets and environmental chambers.

Description

Cooling Method:	Air Cool	Radiating Method:	Force Air
Ambient Temperature/humidity Range:	-20 To 70°C	Cooling Capacity:	60W
Input Power:	100W	Heating Capacity:	135W
Hot/Cold Side Fan Current:	0.25/0.18 A	TEM Nominal/Startup Current:	4.0/4.6A
Nominal/Max Voltagep:	24/30 VDC	Weight:	2KG
Life Time:	>=70,000 Hours	Tolerance:	10%

ATA060 Air to air thermoelectric Cooler Assembly

1.Product Introduction

The ATA Power Cool Series is an Air-to-Air Thermoelectric Assembly (TEA) that uses impingement

flow to transfer heat.It offers dependable, compact performance by cooling.objects via convection.

Heat is absorbed and dissipated thru high density heat exchangers equipped with air ducted shrouds

and brand name fans. The heat pumping action is created by thermoelectric modules, which are custom

designed to achieve a high coefficient of performance (COP)

2. Features

50W capacity rated at ΔT = 0ºC,Tambient
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
Shift between heating and cooling without using a heater
Reduced noise and vibration with no moving parts

3.Application

Outdoor enclosures
Outdoor/Indoor Kiosks and display
Battery Cabinet
Food/Consumer Refrigerator

4.Design drawing
