Product Details:
|
| Capacity-Qmax: | 80W | Input Voltage: | 24VDC |
|---|---|---|---|
| Running Current: | 4.5 +/-10% Amps | Start Current: | 5.3 Amps |
| Hot Side Fans Current: | 0.35 Amps | Cold Side Fans Current: | 0.25 Amps |
| High Light: | peltier air conditioner,industrial air conditioner |
||
Rrefrigeration Assembly Peltier Cabinet Air Conditioner For Enclosure 80W 24VDC

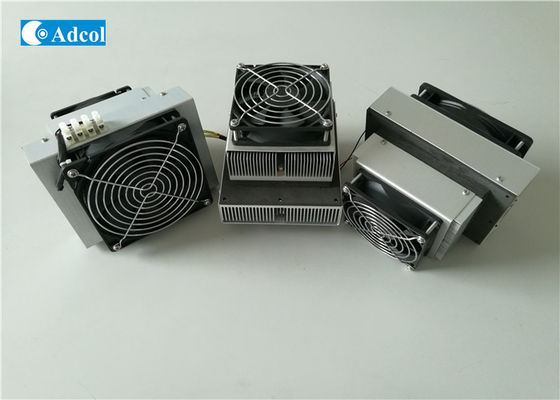

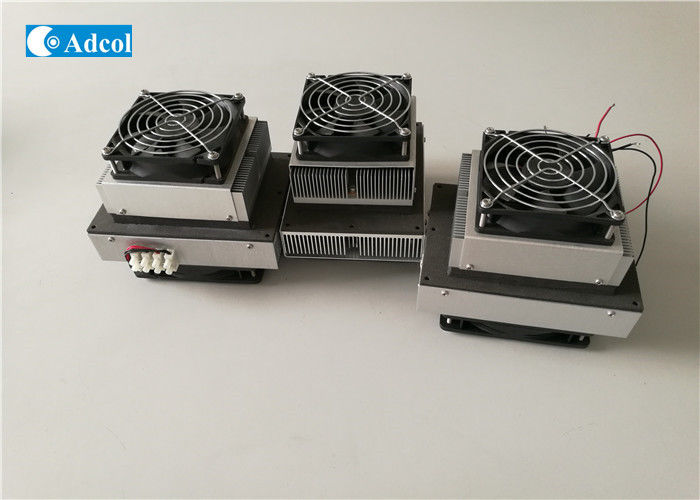

ATA080-24VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers. They can cool to 72˚F below ambient or maintain ambient temperatures while removing up to 280 BTU/Hr (@ 77˚F ambient). Use 24VDC configuration, it could generate 80W power, if use 12VDC configuration, it could generate 100W power. These air conditioners are virtually maintenance-free, with no filters to change, and they can be mounted in any orientation, offering design flexibility with solid-state reliability.
Wiring Schematic (Power Connector)
| Position | Description |
| 1 | TEC + |
| 2 | TEC - |
| 3 | FAN + |
| 4 | FAN - |
1 – Specification:
| Model: | ATA080-24VDC |
| Description | Air to Air cooling System |
| Capacity- Qmax | 80 Watts |
| Input Voltage | 24 VDC |
| Working. Ambient Temp. | 0~60˚C |
| TEM Current (Running) | 4.5+/-10%amps |
| TEM Current (Start) | 5.3amps |
| Hot Side Fans Current | 0.35 amps |
| Cold Side Fans Current | 0.25 amps |
| Weight | Est. 2.8 kg |
| Rating Maintained | NEMA 12 |
| Overall Dimensions | 203mm x 155mm x 213mm |
2 - Installation Method and Cutout Dimension (in mm)
3 - Dimensional Drawing (in mm)
4 – Performance Curve
