Product Details:
|
| Voltage: | 12VDC | Vmax: | 15VDC |
|---|---|---|---|
| Operation Temp.: | -10 - 50 Degree C | Weight: | 3.85kg |
| Life Time: | 50000Hour | Tolerance: | 10% |
| High Light: | peltier liquid cooling system,thermo electric cooler |
||

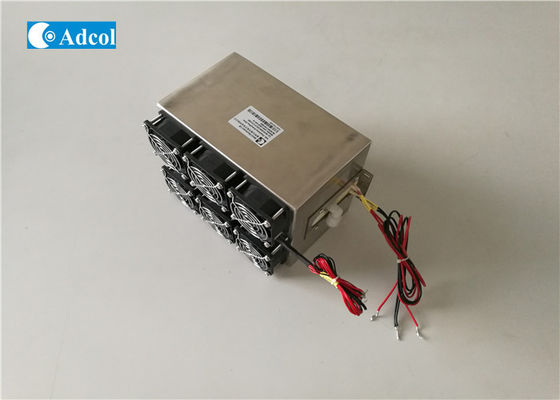

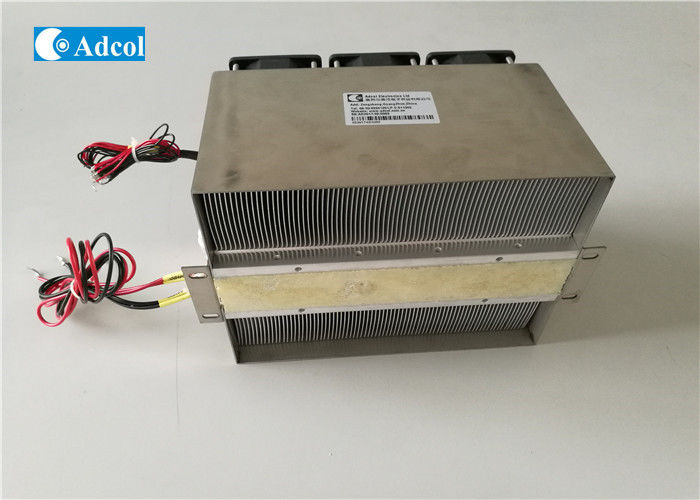

3.85kg Weight Thermoelectric Liquid Cooler For Medical Equipment
This product is widely used in laser, medical, laboratory equipment and a wide range of industrial areas. In recent years, with the rise of laser beauty industry, Our ATL-Series semiconductor coolers have been widely used.
| Model | ATL200-12VDC |
| Cooling Method | Liquid |
| Radiating method | Air Force |
| Ambient temperature/humidity | -10 to 50°C, 35 to 80% RH (No condensation) |
| Cooling Capacity/Qmax | 200W |
| Input Power | 250W |
| Flow Rate | 5-10PLM |
| Pressure Arange | ≤100PSI |
| Port | Optional |
| Run Current | 20.8A |
| Peak Current | 22.0A |
| Voltage | 12VDC |
| Vmax | 15VDC |
| Operation Temp | -10~50℃ |
| Weight | 3.85 Kg |
| Life Time | 50000 Hour |
| Tolerance | 10% |
Dimension
