Product Details:
|
| Flow Rate: | 5-10PLM | Pressure Range: | ≤100PSI |
|---|---|---|---|
| Port: | Optional | Qmax: | 300W |
| Weight: | 3.95kg | Life Time: | 50000Hour |
| Highlight: | peltier liquid cooler,thermo electric cooler |
||

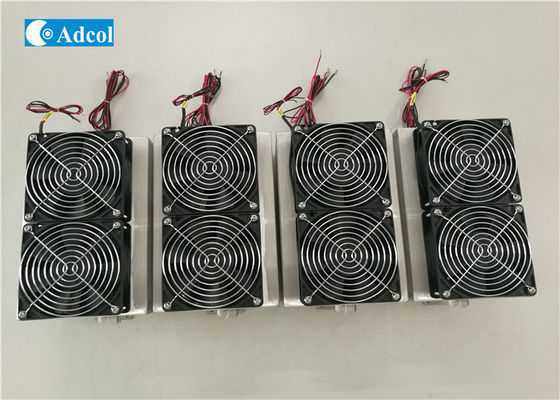

Peltier Thermoelectric Cooler Semiconductor Water Cooler Compact
Thermoelectric Benefits
The choice of a cooling technology will depend heavily on the unique requirements of any given application, however, thermoelectric (TE) coolers offer several distinct advantages over other technologies:
• TE coolers have no moving parts and, therefore, need substantially less maintenance.
• Life-testing has shown the capability of TE devices to exceed 100,000 hours of steady state operation.
• TE coolers contain no chlorofluorocarbons or other materials which may require periodic replenishment.
• Temperature control to within fractions of a degree can be maintained using TE devices and the appropriate support circuitry.
• TE coolers function in environments that are too severe, too sensitive, or too small for conventional refrigeration.
• TE coolers are not position-dependent.
• The direction of heat pumping in a TE system is fully reversible. Changing the polarity of the DC power supply causes heat to be pumped in the opposite direction—a cooler can then become a heater!
| Model | ATL300-24VDC |
| Cooling Method | Liquid |
| Radiating method | Air Force |
| Ambient temperature/humidity | -10 to 50°C, 35 to 80% RH (No condensation) |
| Cooling Capacity/Qmax | 300W |
| Input Power | 348W |
| Flow Rate | 5-10PLM |
| Pressure Arange | ≤100PSI |
| Port | Optional |
| Run Current | 14.0A |
| Peak Current | 15.8A |
| Voltage | 24VDC |
| Vmax | 30VDC |
| Operation Temp | -10~50℃ |
| Weight | 4.95 Kg |
| Life Time | 50000 Hour |
| Tolerance | 10% |
![]()
