Product Details:
|
| Cooling Capacity: | 50W | Voltage: | 12VDC |
|---|---|---|---|
| Stable Current: | 8A | Weight: | 1.1kg |
| Highlight: | thermoelectric cooling plate,thermoelectric cold plate |
||

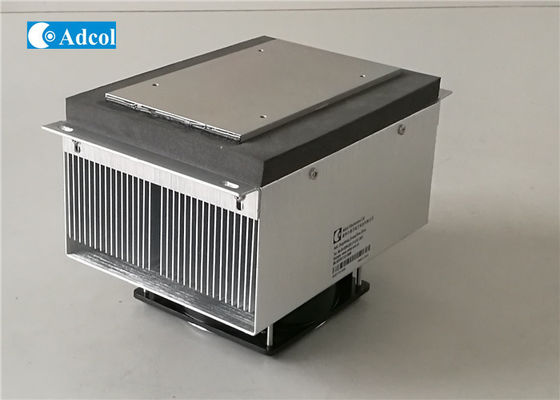

50W Cold Plate Cooling Air to Plate Cooling System For Electronic
Plate Cooler designed using air for heat dissipation and direct cool contact, provide reliable cool capacity to the objective. It is used widely in Medical device, instrument / laboratory test equipment, or direct contact cooling design etc. It has flexible design, small size and high reliability advantage.
| Adcol Item | ATP050-12VDC | |
| Description | Air to Plate Cooling System | |
| Cooling Capacity(W) | 42 | |
| Voltage(VDC) | 12 | |
| Ambient Temperature | 0-60︒C | |
| Running Current(A) | 8.9 | |
| Peak Current(A) | 10.8 | |
| Weight(kg) | 1.1 | |
| Dimension (mm) (Plate side) |
Length | 80 |
| Width | 60 | |
| Height | 12 | |
| Dimension (mm) (Air side) |
Length | 160 |
| Width | 122 | |
| Height | 70 | |
