Product Details:
|
| Cooling Capacity: | 147W | Running Current: | 9A |
|---|---|---|---|
| Voltage: | 24VDC | Weight: | 5.5kg |
| High Light: | thermoelectric cooling plate,thermoelectric cold plate |
||

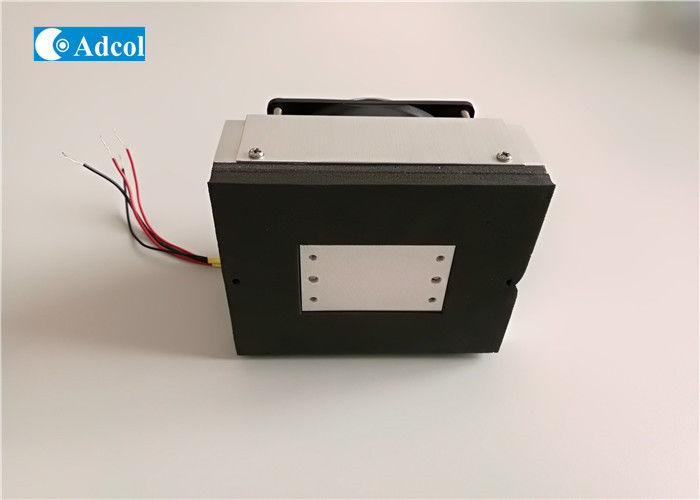

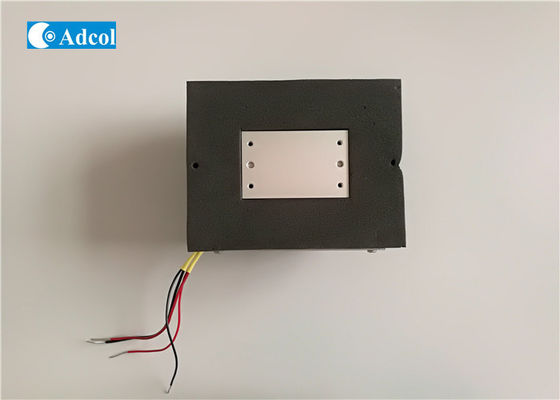

Fast Cooling Peltier Plate Cooler ATP150-24VDC 147W Cooling capacity
Cold plate cooler is typically used in three key applications for cooling/heating
- Objects directly on the cold plate, or objects on an additional cold plate of your own design
- Enclosures by attaching a thermal conductive container to the cold plate
- Liquids by attaching a thermal conductive tank or liquid heat sink to the cold plate
| Adcol Item | ATP050-24VDC | |
| Description | Air to Plate Cooling System | |
| Cooling Capacity(W) | 50 | |
| Voltage(VDC) | 24 | |
| Ambient Temperature | 0-60︒C | |
| Running Current(A) | 4 | |
| Weight(kg) | 1.1 | |
| Dimension (mm) (Plate side) |
Length | 80 |
| Width | 60 | |
| Height | 12 | |
| Dimension (mm) (Air side) |
Length | 160 |
| Width | 122 | |
| Height | 70 | |
