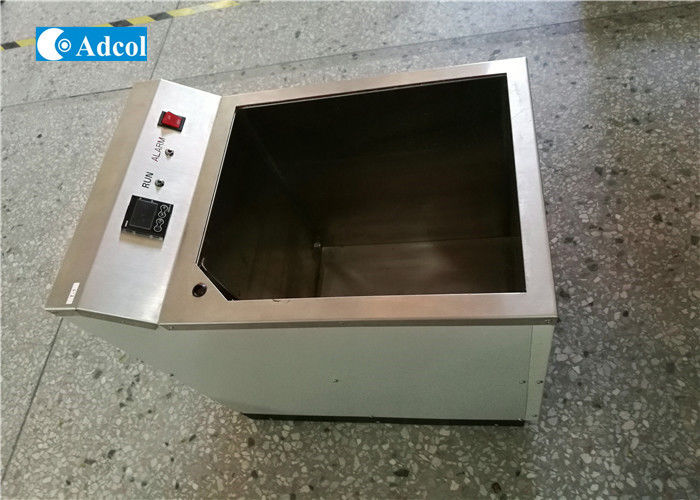

Semiconductor Thermoeelctric Bath For Chemical Analysis

Semiconductor Thermoeelctric Bath For Chemical Analysis
Semiconductor Thermoeelctric Bath For Chemical Analysis

Large Image :  Semiconductor Thermoeelctric Bath For Chemical Analysis

Product Details:
Place of Origin: China
Brand Name: Adcol
Certification: ISO9001 , CE
Model Number: ARB320-02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Semiconductor Thermoeelctric Bath For Chemical Analysis
Delivery Time: 3 - 4 weeks
Payment Terms: T/T, Paypal
Supply Ability: 200pcs per month
Detailed Product Description
Facility Liquid , Temp: 10~35℃(No Dew Condensation) Flow Rate: 2~7 L/min
Pressure: ≤145 PSI (1 MPA) Port Size: RC 3/8
Drain Port Size: CPC Coupling PLCD 16006 Power Supply: 94~265 VAC, Single Phase, 50/60HZ, 600W
High Light:

thermoelectric peltier cooler

,

tec thermoelectric cooler

Semiconductor Thermoeelctric Bath For Chemical Analysis

Features:
​- Fast cooling and heating with precise temperature
​- Easy to operate
- Environmentally friendly and refrigerant-free
- Programmable Digital Temperature Controller
- System Error Monitor and alarm
​- High reliability

Item Description
ARB320-01 ARB320-02
Control Method Cooling/heating automatic PID control PID
Heat Radiation Peltier element(Liquid-Cooled)
Operating Temp 0~60℃(for Water ≥4℃)
Temp. stability ±0.04℃
Temp. distribution ±0.04℃
Cooling Capacity 320W @T-bath=25℃;T-facility=25℃
Heating Capacity 700W @T-bath=25℃;T-facility=25℃
Bath Liquid Water : 4-60℃
Ethylene glycol-Water (≤50%) : 0-60℃
Facility Liquid Temp 10~35℃(No Dew Condensation)
Flow rate 2~7 L/min
Pressure ≤145 PSI (1 MPA)
port size RC 3/8
Size Bath W216xD216xH250mm Usable Dept: 220mm W300xD350xH400mm Usable Dept: 370mm
Overall W266xD376xH400mm W350xD510xH550mm
Drain Port size CPC Coupling PLCD 16006
Power supply 94~265 VAC, Single phase, 50/60HZ, 600W
Over Current Protection Rated current, 10A
Serial COMM RS485( RS 232 Option)
Alarm Output High/Low temp alarm, Output cutoff alarm
Temp. Sensor PT100, 3 wires
Ambient Temp 10~35℃
Humidity ≤85% RH
Weight Approx. 20KG Approx. 30KG


Typical Applications:
- Jacketed reactor vessels
- Large rotary evaporators
- Reaction calorimetry
- Analytical instrumentation



Application Examples:
Thermoelectric Bath for cooling
Thermoelectric Bath for cooling


Semiconductor Thermoeelctric Bath For Chemical Analysis 2
