Product Details:
|
| Item: | ARB320-01 | Control Method: | Cooling/heating Automatic PID Control PID |
|---|---|---|---|
| Operating Temp: | 0~60℃(for Water ≥4℃) | Temp. Distribution: | ±0.04℃ |
| Heating Capacity: | 700W @T-bath=25℃;T-facility=25℃ | Size: | W266xD376xH400mm |
| High Light: | thermoelectric cooling unit,tec thermoelectric cooler |
||

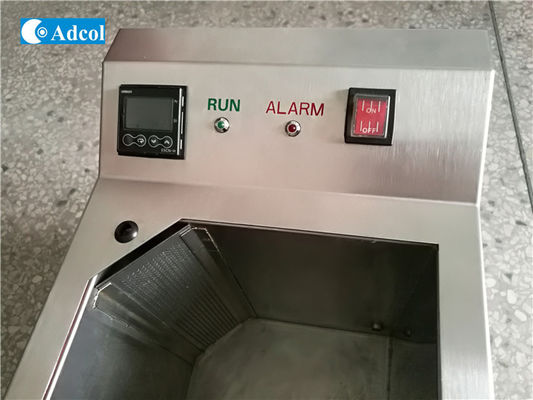

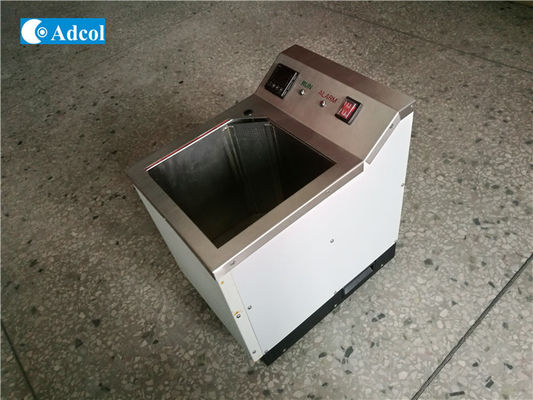

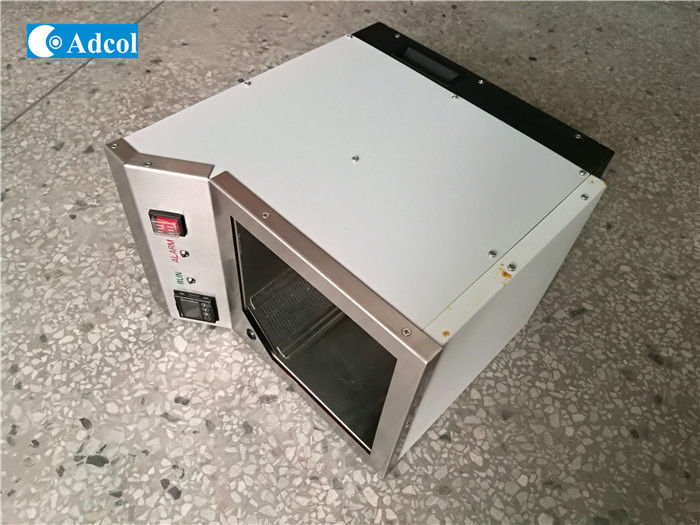

Mobile Peltier Bath For Constant Temperature Themoelectric Cooling
Adcol recirculating bath (tank) designed per customer request. ARB is used for LED manufacturing evaporating system , control the liquid in bath for ±0.05︒C precision.
ART is widely used in every industry , maintain test temperature in ±0.5︒C range . We also could design per customer request .
| ARB/T Part No. | Capacity(W) | Cool objective | Precision Temp. | Weight(kg) | Dimension(cm) | Bath Volume(L) |
| ART-100-220VAC-A-00 | 100 | Air | ±0.5︒C | 17 | W73xD45xH50 | 40 |
| ARB-320-220VAC-A-00 | 320 | Liquid | ±0.04︒C | 25 | W35xD51xH55 | 39 |
Features
- Fast cooling and heating with precise temperature
- Easy to operate
- Environmentally friendly and refrigerant-free
- Programmable Digital Temperature Controller
- System Error Monitor and alarm
- High reliability
Application
Evaporation of chemicals for MOCVD
Temperature control of diffusion gas
Thermal test with immersion
Indirect temperature control of chemicals and liquid with high viscosity
Prevention of electric shock and fire
Do not operate the switch with wet hands . Also , do not operate the Thermoelectric Bath with water or fluid left on it .
Action in the case of error
If any error such as abnormal sounds , smoke , or bad smell occurs , cut off the power at once , and stop supplying facility water . Please contact Adcol or a sales distributor to repaire the Themoelectric Bath .
