Product Details:
|
| Voltage: | 10.0V | Resistance: | 6.6Ohm |
|---|---|---|---|
| Current: | 0.8Amps | Power: | 3.8Watt |
| Density: | 8.4Wcm2 | AC Resistance: | 4.1Ohm |
| High Light: | thermoelectric power generator,thermoelectric peltier generator |
||

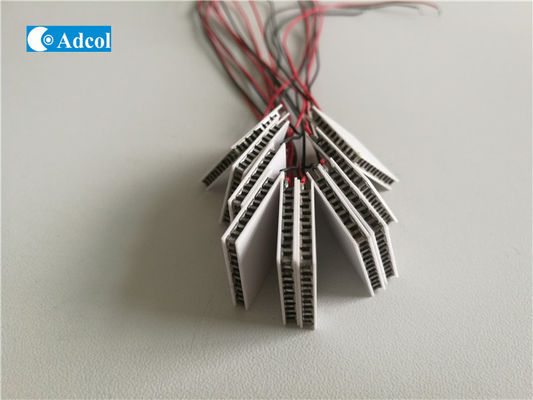

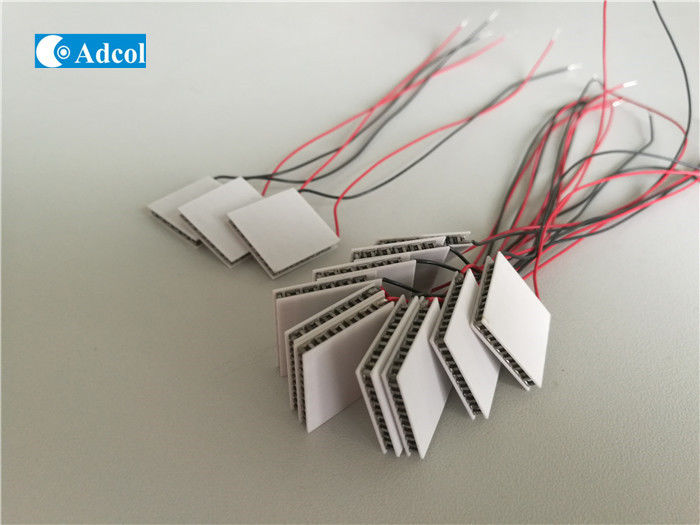

Cooling device Thermoelectric Peltier Generator 4.1Ohm AC resistance
These modules are manufactured specifically for high temperature applications such as power generation. Although they can also be used for cooling and/or heating applications, they are far superior than standard peltiers for power generation applications. They can be safely operated at much higher temperatures that standard peltier devices are capable of withstanding. Each module contains 127 junctions and 254 thermal elements that are formulated for optimum Seebeck. Unique construction includes the use of high temperature solder (238 deg C) and Teflon insulated lead wires for high temperature operation.
Standard peltier devices are typically limited to a maximum operating temperature of only 150 deg C which limits their use for power generation. These modules can be exposed to temperatures as high as 230 deg C and can be operated continuously at 200 deg C making them ideal for power generation use.
| Part Number | TEG1-127-1.0-1.5-250 |
| Hot side Temperature (Degree C) | 250 |
| Cold Side Temperature (Degree C) | 30 |
| Voltage open circuit (Volts) | 10.0 |
| Matched load resistance (Ohm) | 6.6 |
| Matched load output Voltage (Volts) | 5.0 |
| Matched load output Current (Amps) | 0.8 |
| Matched load output power (Watt) | 3.8 |
| Heat flow across the module (Watt) | 76 |
| Heat flow Density (Wcm2) | 8.4 |
| AC resistance (Ohm) under 27 degree C | 4.1 |
Mechanical Dimension & Construction
Performance Curve
