Product Details:
|
| Voltage: | 10.0V | Resistance: | 6.6Ohm |
|---|---|---|---|
| Current: | 0.8Amps | Power: | 3.8Watt |
| Density: | 8.4Wcm2 | AC Resistance: | 4.1Ohm |
| High Light: | thermoelectric power generator,thermal electric generators |
||

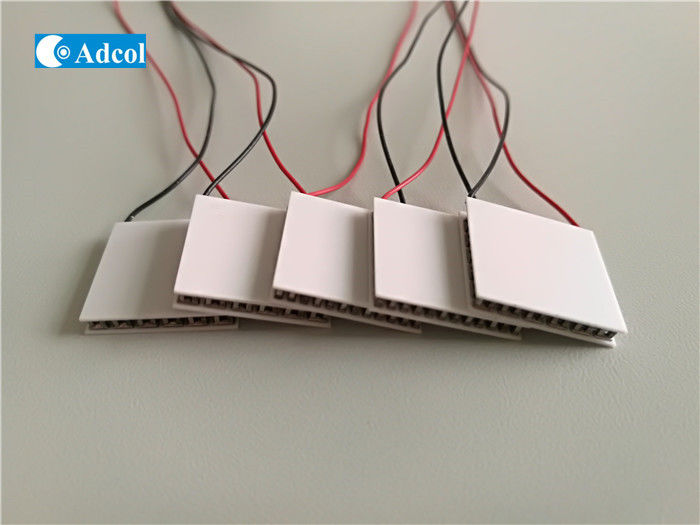

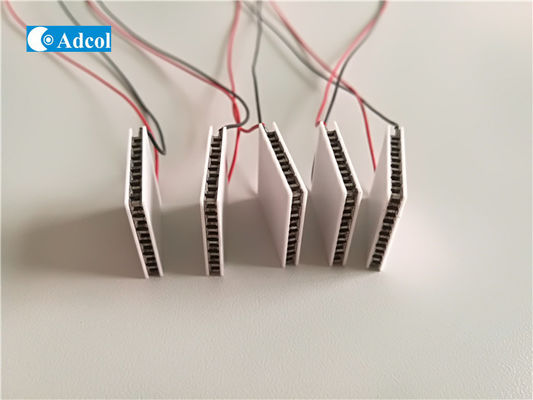

High Performance TEG Thermoelectric Generator With Power Supply Thermoelectric Module
Examples for using Thermoelectric Peltier Modules:
Water Machines, Medical Equipments, Colling boxes and
small fridges, Massagers, Electronic Parts cooling
(Processors, Integrated circuits...) and many more.
Thermoelectric power generating module (TEG) is one kind of power generating device which uses
the Seebeck Effect to convert heat source into electricity directly. It has the characteristics of compact structure, reliable performance, maintenance-free, working without noise, low-carbon and green. The heat source of TEG is extremely extensive. It will generate DC electricity continuously as long as there is temperature difference between both sides of module. Besides thermoelectric material, the factor which affects the generating capacity and conversion efficiency of TEG is the temperature difference. The larger temperature difference, the more generating capacity and higher conversion efficiency will be obtained.
| Part Number | TEG1-127-1.0-1.5-250 |
| Hot side Temperature (Degree C) | 250 |
| Cold Side Temperature (Degree C) | 30 |
| Voltage open circuit (Volts) | 10.0 |
| Matched load resistance (Ohm) | 6.6 |
| Matched load output Voltage (Volts) | 5.0 |
| Matched load output Current (Amps) | 0.8 |
| Matched load output power (Watt) | 3.8 |
| Heat flow across the module (Watt) | 76 |
| Heat flow Density (Wcm2) | 8.4 |
| AC resistance (Ohm) under 27 degree C | 4.1 |
Mechanical Dimension & Construction
Performance Curve
