Product Details:
|
| Voltage: | 10.0V | Resistance: | 6.6Ohm |
|---|---|---|---|
| Current: | 0.8Amps | Power: | 3.8Watt |
| Density: | 8.4Wcm2 | AC Resistance: | 4.1Ohm |
| High Light: | thermoelectric power generator,thermoelectric peltier generator |
||

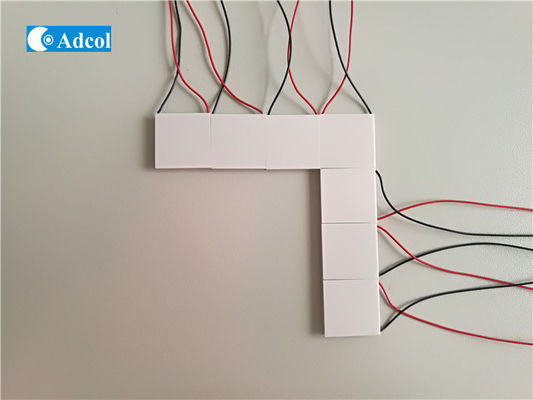

Peltier Thermoelectric Generator / Thermoelectric Cooling Module Peltier Module TEG Cooler
Work principle
Temperature difference semiconductor power generation technology, its work principle is in two different set a
temperature difference on both ends of the semiconductor, and so on semiconductor created a dc voltage.Temperature
difference semiconductor power with no noise, long service life, stable performance, etc.To 40 degrees Celsius below zero
in cold environment quickly start, so get more and more widely used in practice.
| Part Number | TEG1-127-1.0-1.5-250 |
| Hot side Temperature (Degree C) | 250 |
| Cold Side Temperature (Degree C) | 30 |
| Voltage open circuit (Volts) | 10.0 |
| Matched load resistance (Ohm) | 6.6 |
| Matched load output Voltage (Volts) | 5.0 |
| Matched load output Current (Amps) | 0.8 |
| Matched load output power (Watt) | 3.8 |
| Heat flow across the module (Watt) | 76 |
| Heat flow Density (Wcm2) | 8.4 |
| AC resistance (Ohm) under 27 degree C | 4.1 |
Mechanical Dimension & Construction
Performance Curve
