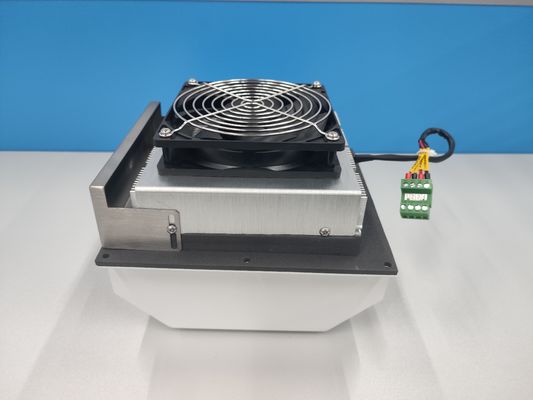

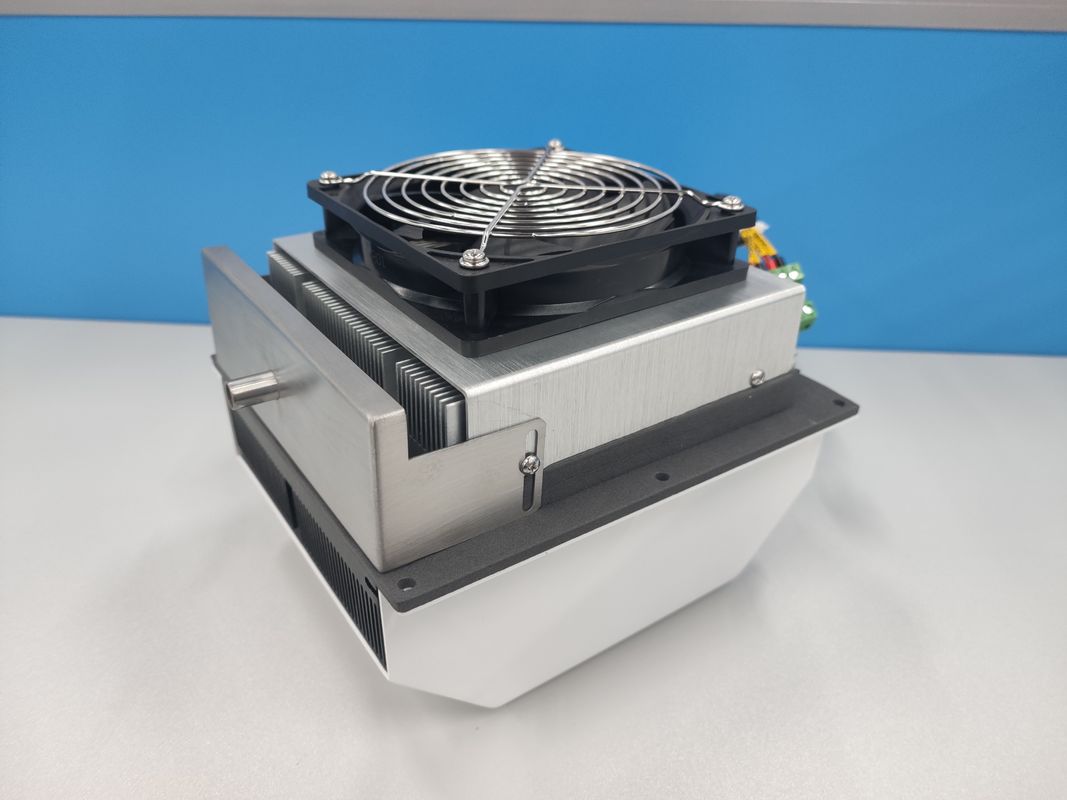

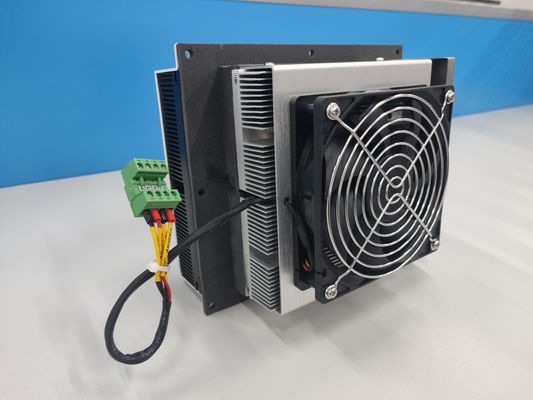

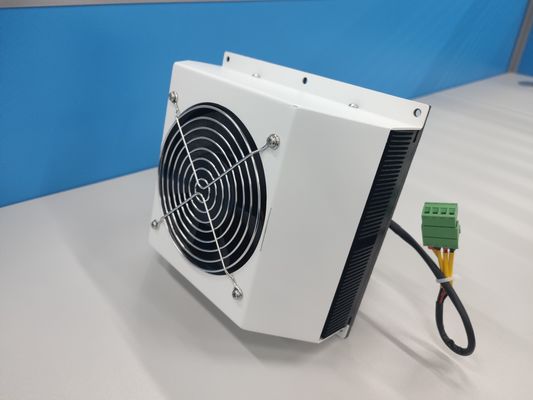

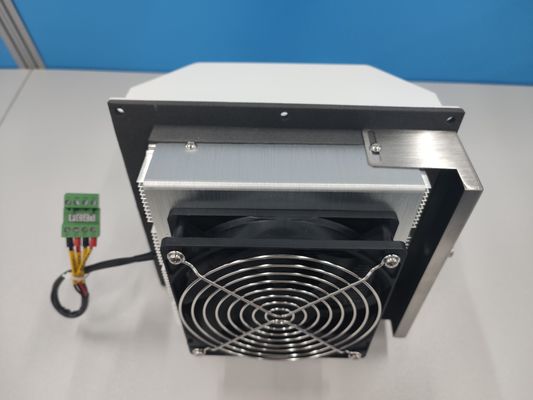

ATA100-48VDC Air to air thermoelectric Cooler Assembly

Large Image : ATA100-48VDC Air to air thermoelectric Cooler Assembly

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATA100-48VDC

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500pcs per month

Contact Now

ATA100-48VDC Air to air thermoelectric Cooler Assembly

Description

Part Number::	ATA100-48VDC	Description:	Air To Air TEC Cooling
Cool Capacity:	100W	Input Voltage:	48VDC
Current:	4.3A	Start Current:	5.4A
Hotside Fan Current:	0.2A	Coldside Fan Current:	0.15A
Unit Weight:	4KG	Fan,cold Side:	12025,48VDC
Fan, Hot Side:	12038,48VDC,IP55	Operating Temp:	-40~60℃(Fan:-10~70℃)
Highlight:	ATA100 thermoelectric cooler assembly , 48VDC Peltier cooler , air to air thermoelectric cooler

ATA100-48VDC Air to air thermoelectric Cooler Assembly 0

ATA010-48VDC

Air to air thermoelectric Cooler Assembly

ATA100-48VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration

and environmental chambers.

They can cool to 72˚F below ambient or maintain ambient temperatureswhile removing up to

280 BTU/Hr (@ 77˚F ambient). Use 48VDC configuration, it could generate100W power;

These air conditioners are virtually maintenance-free, with no filters to change, and they can

be mounted in any orientation, offering design flexibility with solid-state reliability.
