Product Details:
|
| P/N: | ATA010-05-FH-00 | Heat Transfer, Cold: | AIR |
|---|---|---|---|
| Heat Transfer. Hot: | AIR | Cooling Power: | 10 |
| Startup Current: | 8.2A | Voltage,normal(vDC): | 5VDC |
| Fan,cold Side: | 60X15mm,5VDC .0.1A | Fan, Hot Side: | 80X15mm,5VDC.0.2A |
| OperatingTemp: | -10~55℃ | Keyword: | Cooling Peltier Thermoelectric |
| Application: | Industrial, Commercial, Home | Life Expectancy: | Over 200,000 Hours |

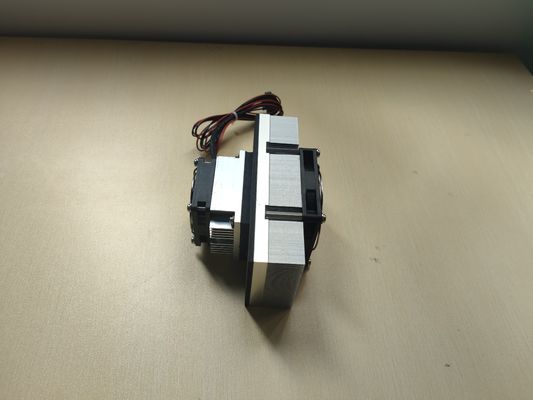

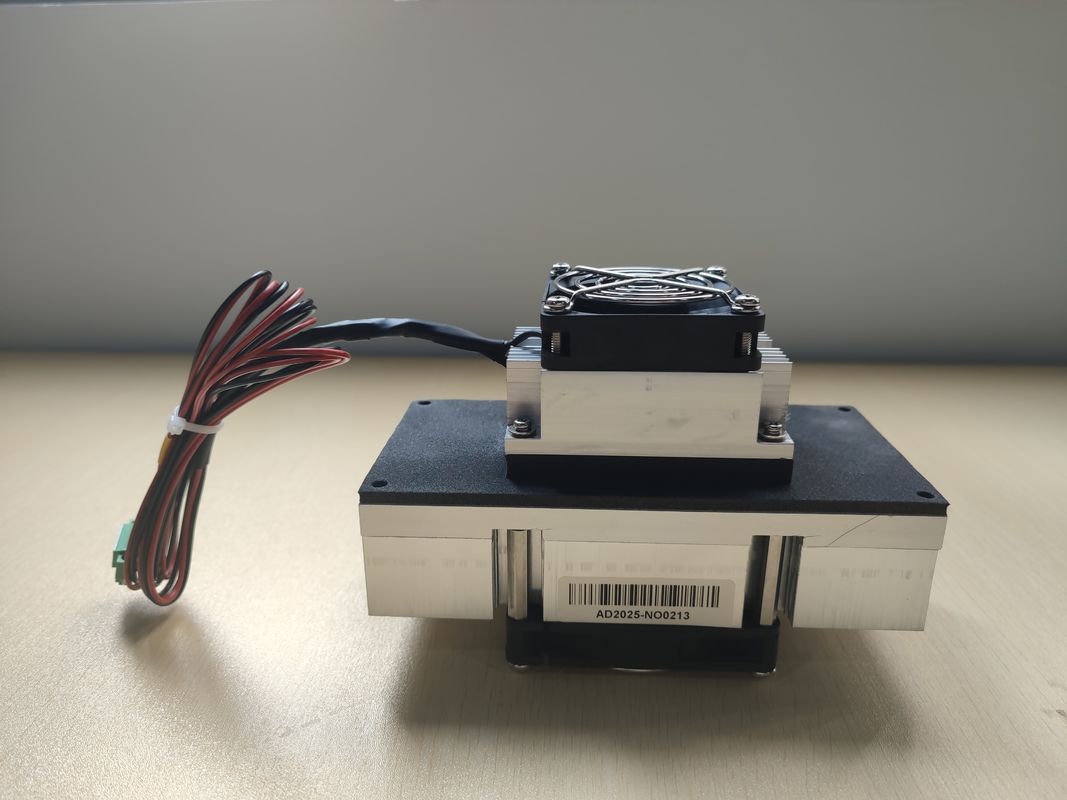

ATA010-05-FH-00
Air to air thermoelectric Cooler Assembly
The ATA010-05-FH-00 Thermoelectric air conditioner is designed for electronic cabinets and environmental chambers.
It can maintain ambient temperatures while removing up to 10W. This model is available in 5VDC configurations.
This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.
