24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial

24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial
24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial 24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial 24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial

Large Image :  24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial

Product Details:
Place of Origin: CHINA
Brand Name: Adcol
Certification: ISO9001 , CE
Model Number: ATP160-24VDC
Payment & Shipping Terms:
Minimum Order Quantity: 1EA
Price: Negotiation
Packaging Details: Solid carton packaging
Delivery Time: 3 - 4 weeks
Payment Terms: T/T , Paypal
Supply Ability: 500pcs per month
Contact Now

24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial

Description
P/N: ATP160-24VDC Cooling Method: Plate Cool
Radiating Method: Force Air Ambient Temperature/humidity: -20 To 60°C
Cooling Capacity: 160W Nominal/Max Voltage: 24 VDC
Life Time: >=70.000 Hours Tolerance: 10%
Weight: 5KG

ATP160-24VDC

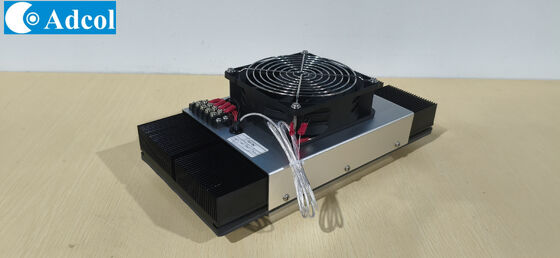

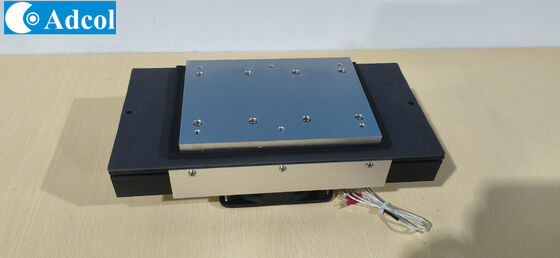

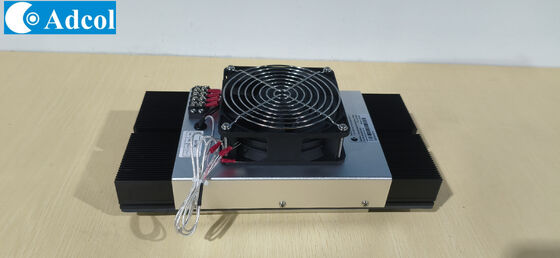

Air to Plate thermoelectric Cooler Assembly



1.Product Description

The ATP080-24 Thermoelectric air plate is designed for electronic cabinets and environmental chambers.
It can maintain ambienttemperatures while removing up to 80W. This model is available in24VDC
configurations. This air cold plate is virtually maintenance-free, with no filters ambient to change,
and it can be mounted in any orientation, offering design flexibility with solid-state reliability.


24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial 0



2.Features

  • 80W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts



3.Application

  • Analytical instrument
  • Medical diagnostics
  • Industrial device
  • Food and Beverage Cooling



4. Drawing



24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial 1



24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial 2





24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial 3
