ATL400-24 Thermoelectric Cooler: 370W Capacity, Refrigerant Free, Wide Temperature Range

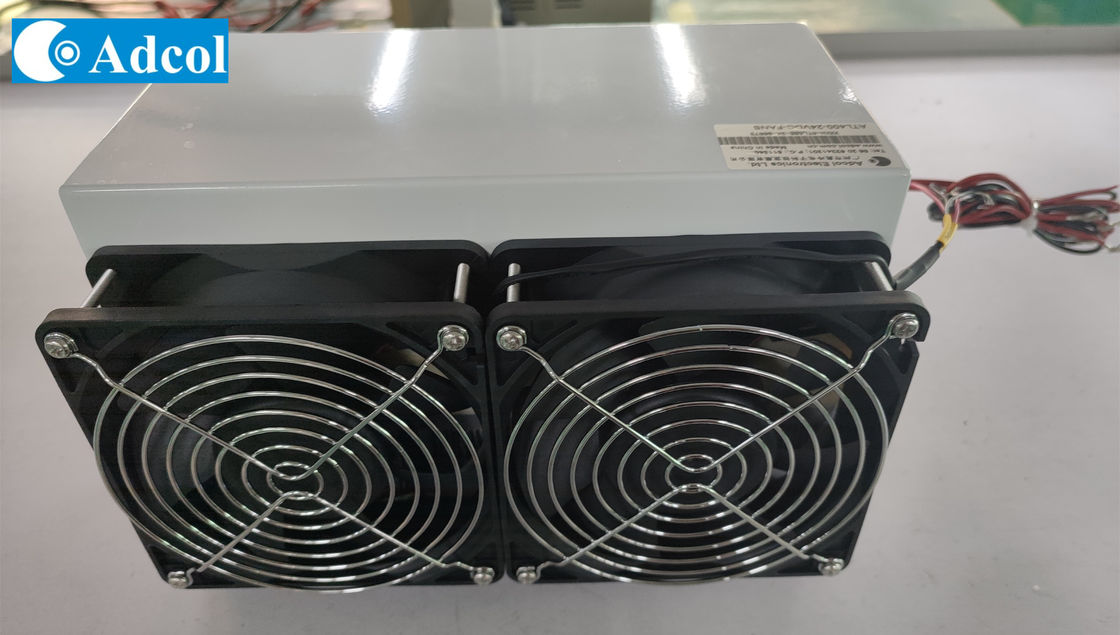

Large Image : ATL400-24 Thermoelectric Cooler: 370W Capacity, Refrigerant Free, Wide Temperature Range

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATL400-24-00

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid Carton Packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500Pcs/Month

Contact Now

ATL400-24 Thermoelectric Cooler: 370W Capacity, Refrigerant Free, Wide Temperature Range

Description

P/N:	ATL400-24-00	Cooling Method:	Liquid Cool
Radiating Method:	Air Force	Ambient Temperature/humidity:	-20 To 60°C
Cooling Capacity:	370W	Input Power:	470W
Nominal/Max Voltage:	24/30 VDC	Overall Dimension:	275mm X 158mm X 170mm
Weight:	6.8Kg	Life Time:	>=70,000 Hours
High Light:	Refrigerant Free ATL400-24 Thermoelectric cooler , Temperature Range ATL400-24 Thermoelectric cooler , 370W ATL400-24 Thermoelectric cooler

The ATL400-24 Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat. Heat is absorbed through a liquid

exchanger and dissipated by high density heatsink with fan. It could remove up to 370W cooling, and is available in 24VDC

configurations. Also it is virtually maintenance-free, and can be mounted in any orientation, offering design flexibility with

solid-state reliability.

Features

370W capacity rated at ΔT = 0ºC,Tambient = 30°C
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
Shift between heating and cooling without using a heater
Reduced noise and vibration with no moving parts

Application

Analytical instrument
Medical diagnostics
Industrial laser
Medical laser

ATL400-24 Thermoelectric Cooler: 370W Capacity, Refrigerant Free, Wide Temperature Range 1
