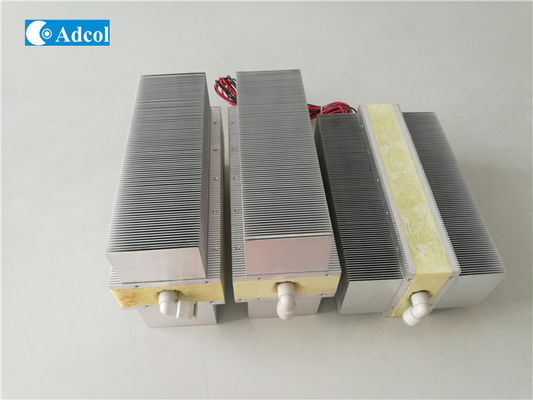

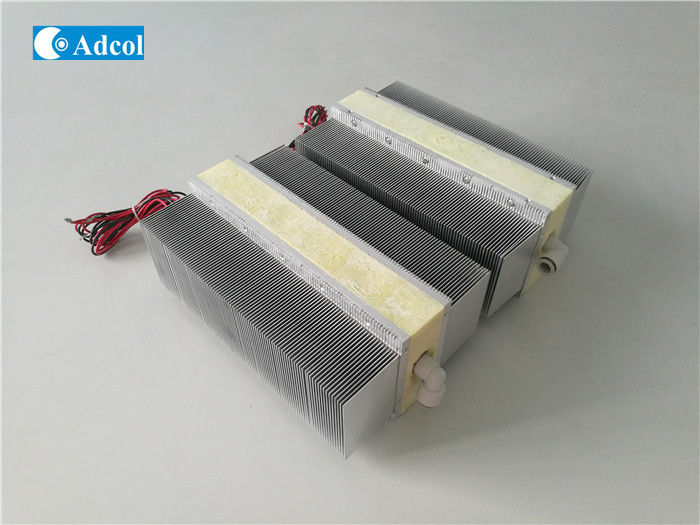

Peltier Liquid Thermoelectric Cooler Water Cooling

Peltier Liquid Thermoelectric Cooler Water Cooling
Peltier Liquid Thermoelectric Cooler Water Cooling Peltier Liquid Thermoelectric Cooler Water Cooling

Large Image :  Peltier Liquid Thermoelectric Cooler Water Cooling

Product Details:
Place of Origin: China
Brand Name: Adcol
Certification: ISO9001 , CE
Model Number: ATL300-24VDC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Solid carton packaging
Delivery Time: 3 - 4 weeks
Payment Terms: T/T , Paypal
Supply Ability: 500pcs per month

Peltier Liquid Thermoelectric Cooler Water Cooling

Description
Qmax: 300W Run Current: 14.0A
Peak Current: 15.8A Voltage: 24VDC
Vmax: 30VDC Weight: 4.00kg
High Light:

thermoelectric peltier cooler

,

thermoelectric cooling unit

Peltier Liquid Thermoelectric Cooler Water Cooling​

Thermoelectric Benefits
The choice of a cooling technology will depend heavily on the unique requirements of any given application, however, thermoelectric (TE) coolers offer several distinct advantages over other technologies:
• TE coolers have no moving parts and, therefore, need substantially less maintenance.

• Life-testing has shown the capability of TE devices to exceed 100,000 hours of steady state operation.
• TE coolers contain no chlorofluorocarbons or other materials which may require periodic replenishment.

• Temperature control to within fractions of a degree can be maintained using TE devices and the appropriate support circuitry.

• TE coolers function in environments that are too severe, too sensitive, or too small for conventional refrigeration.

• TE coolers are not position-dependent.

• The direction of heat pumping in a TE system is fully reversible. Changing the polarity of the DC power supply causes heat to be pumped in the opposite direction—a cooler can then become a heater!​


Model ATL300-24VDC
Cooling Method Liquid
Radiating method Air Force
Ambient temperature/humidity -10 to 50°C, 35 to 80% RH
(No condensation)
Cooling Capacity/Qmax 300W
Input Power 348W
Flow Rate 5-10PLM
Pressure Arange ≤100PSI
Port Optional
Run Current 14.0A
Peak Current 15.8A
Voltage 24VDC
Vmax 30VDC
Operation Temp -10~50℃
Weight 4.95 Kg
Life Time 50000 Hour
Tolerance 10%
