Product Details:
|
| Initial Current: | 6.2A ±10% | Normal Current: | 5.4A ±10% |
|---|---|---|---|
| Fan, Cold Side: | N/A | Fan, Hot Side: | 120X38mm,24VDC, 0.4A |
| Operating Temp.: | -10～55︒C | Weight: | 3.12kg |
| High Light: | tec thermoelectric cooler,thermoelectric cooling unit |
||

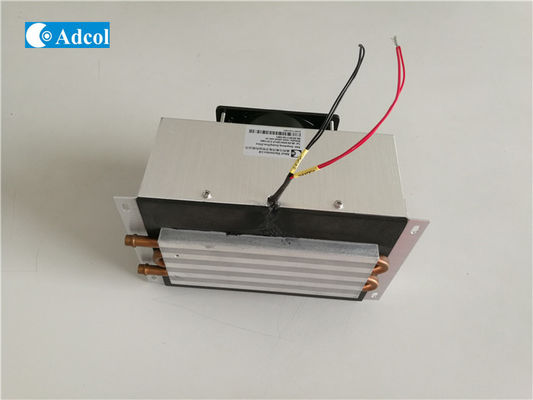

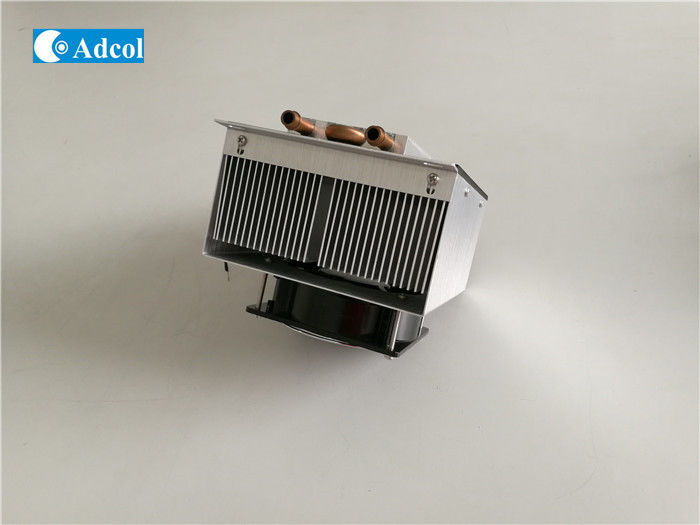

Thermoelectric Refrigeration Unit Thermoelectric Cooler
Thermoelectric Liquid to Air series used to cool or heat a liquid or gas flowing through a heat sink. Thermoelectric liquid heat sink is designed for a recycling system. The heat is absorbed by the liquid heat sink, pumped through the thermoelectric modules, and then dissipated to the air by an air heat sink.
Widely used for multi-industry:
• Analytical instrumentation
• Medical diagnostics
• Photonics laser systems
• Industrial instrumentation
• Food and beverage cooling
Features
Maintenance free design with no moving components (other than fans)
No compressor, refrigerant or filters
Compact size, light weight, convenient to install and operate
Construction (Alluminum Alloy) for inddor and outdoor use
DC power configurations
| Specification (Ta=27︒C) | Description |
| Heat transfer, hot | Air |
| Heat transfer, cold | Liquid |
| Cooling power (W) | 100 (ΔT=0) |
| Voltage, normal(VDC) | 24, Vmax=36VDC |
| Initial Current | 6.2A ±10% |
| Normal Current | 5.4A ±10% |
| Fan, cold side | N/A |
| Fan, hot side | 120X38mm,24VDC, 0.4A |
| Operating Temp. | -10～55︒C |
| Weight | 3.12kg |
